Barco Encore3 Rental
Screen Management Rental
Show-ready Control. Backed by real-world engineering.
Barco Encore3 rental from HRE for corporate events, LED walls, projection, and multi-display productions.
8x 4K60 outputs
HDMI 2.0, DisplayPort and 12G-SDI
Ultra low processing latency
16x 4K60 inputs
HDMI 2.0, DisplayPort and 12G-SDI
Genlock and sync support
Dante Built In
supported embedded audio
Designed for LED, Projection and complex multi screen
Modular Architecture
Flexible architecture with multi-chassis expansion capability
Redundant power supplies
Barco Encore3 rental for live events
HRE brings long-standing experience in corporate and live-event image processing to every Barco Encore3 rental. We help plan your screen layout, configure the system, and prepare it for your production. Add programming and onsite operation to match your crew and show requirements.

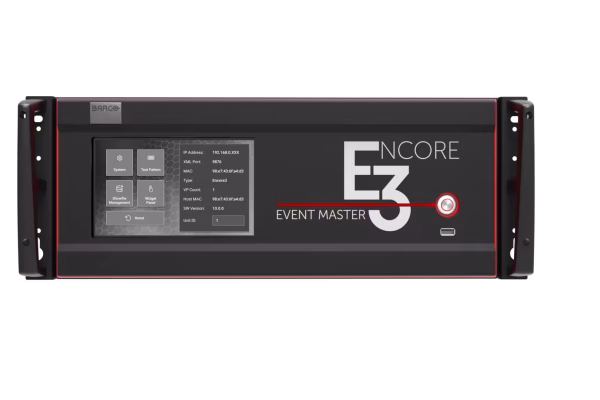

The Barco Encore3 is a powerful, next-generation screen management platform built for demanding live events, large-format displays, LED canvases, projection systems, and multi-screen productions. Designed around uncompromised native 4K processing, Encore3 combines high-quality scaling, flexible screen management, and extensive system resources in a modular platform that can grow with the size and complexity of the show.
Encore3 supports a boundless canvas with up to eight 4K60 program outputs, 12-bit 4:4:4 processing, and up to eight 4K60 layers per screen. The standard configuration provides 16 4K60 inputs and eight 4K60 outputs, with support for HDMI, DisplayPort, and 12G-SDI workflows. Barco’s Athena scaling, ultra-low processing latency, integrated Dante and embedded audio, genlock, Multiviewer capabilities, and flexible AUX outputs make it well suited for complex live-production environments.
The modular architecture also allows multiple Encore3 systems to be linked when additional I/O and processing resources are required, making it a strong option for everything from corporate events and large LED displays to blended projection and multi-destination experiences.
Technical Specifications
Processing Power
Native 4K60 processing with 12-bit 4:4:4 color
Show outputs
8x 4K60 program outputs
Show inputs
16x 4K60 inputs

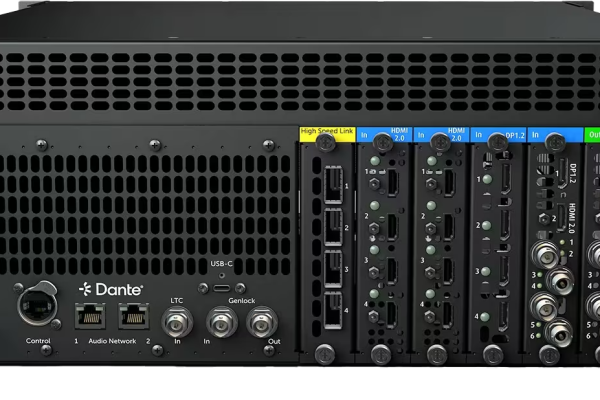

I/O
HDMI 2.0, DisplayPort and 12G-SDI
Networking
RJ-45 - 10/100/1000 Mbps (Autosensing)
QSFP28 link cards (supporting dual 100G connections)
QSFP28 link cards (supporting dual 100G connections)
Genlock & Synchronization
Analog reference input/Output on BNC connectors;
bi-level and blackburst at SD and tri-level at HD
bi-level and blackburst at SD and tri-level at HD
Scaled AUX Outputs
User definable for up to 8x 4096 x 2160 @60p Each output card supports up to 2x AUX ouputs
Form factor / power
4RU chassis / redundant power supplies
Is a backup Encore3 included?
A backup Encore3 is not included by default. You can request a matching backup unit as part of your rental package. HRE can help plan redundancy and configure both units around your show requirements.
Which accessories come with the rental?
Each Encore3 rental comes show-ready with the essential accessories needed for operation, including the appropriate power, network, and connection cabling for your configuration. Additional accessories, control hardware, adapters, and backup components can also be added based on your show requirements.
Can I add programming or an operator?
Yes. Programming and experienced ENCORE operators can be added to your rental package as needed. Whether you need pre-show programming, on-site operation, or full show support, we can provide skilled personnel to help get your system built, tested, and show-ready.
What should I send for a quote?
To get an accurate quote, send us your show dates, system requirements, expected resolution and output count, and any available signal flow or system drawings. Let us know if you’ll also need programming, an operator, backup systems, or additional equipment. If you’re not sure exactly what you need, send us what you have and our team can help build the right package for your show.
RENTAL INQUIRY
Request a Barco Encore3 rental quote
Tell us your event dates, screen layout, source list, and output resolutions. HRE can help build your Barco Encore3 rental package with the equipment and support your production needs.
Planning a purchase? Explore our Barco sales and certified reseller services. For manufacturer documentation, visit the official Encore3 product page.
