Lightware MX2 Rentals
HDMI & DisplayPort Matrix Switchers
Six models. The right connections for your show.
Rent Lightware MX2 matrix switchers for corporate events, staging and multi-display productions. Compare all six HDMI and DisplayPort models.
6 models
In rental inventory
8×8–48×48
Four routing sizes
HDMI + DP
Choose by connection type
4K60
4:4:4 support
Compare all six Lightware MX2 rental models
Choose an MX2 matrix by input count, output count and connector type. HRE rental inventory includes four HDMI models, a mixed HDMI/DisplayPort input model and a 48×48 DisplayPort model.
Use the model pages below to review connections, manufacturer specifications and rental planning details. Send your dates and signal flow to request availability and a quote.
Lightware MX2-8×8-HDMI20-L
8×8 HDMI matrix rental
Inputs: 8 × HDMI 2.0
Outputs: 8 × HDMI 2.0
Rack height: 1RU
Compact signal routing for breakout rooms, presentation systems and smaller live productions.
Lightware MX2-16×16-HDMI20-R
16×16 HDMI matrix rental
Inputs: 16 × HDMI 2.0
Outputs: 16 × HDMI 2.0
Rack height: 3RU
HDMI source and destination routing for general sessions, corporate events and multi-display productions.
Lightware MX2-24×24-HDMI20-R
24×24 HDMI matrix rental
Inputs: 24 × HDMI 2.0
Outputs: 24 × HDMI 2.0
Rack height: 4RU
Expanded HDMI routing for multi-room events, larger presentation systems and productions with many display destinations.
Lightware MX2-48×48-HDMI20-A-R
48×48 HDMI + audio matrix rental
Inputs: 48 × HDMI 2.0
Outputs: 48 × HDMI 2.0
Rack height: 8RU
High-capacity HDMI distribution for large events, complex staging systems and multi-screen productions.

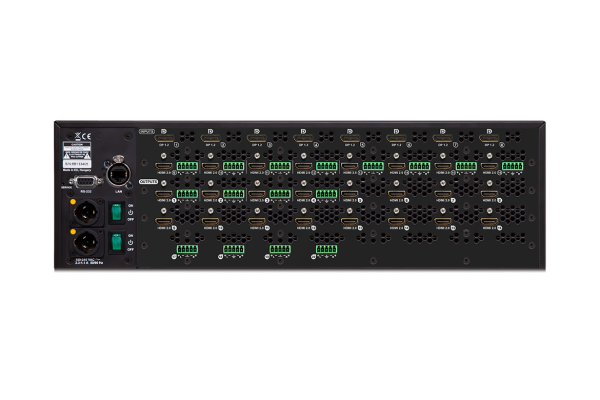

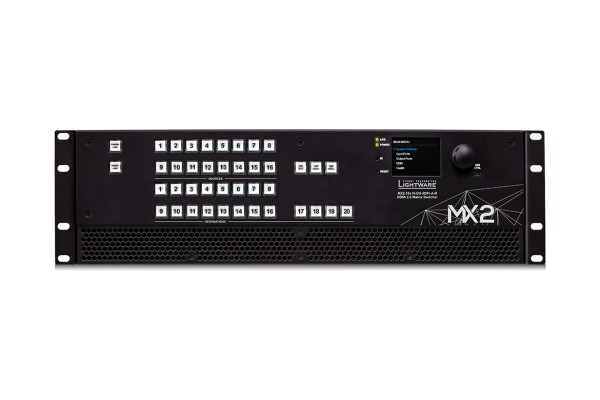

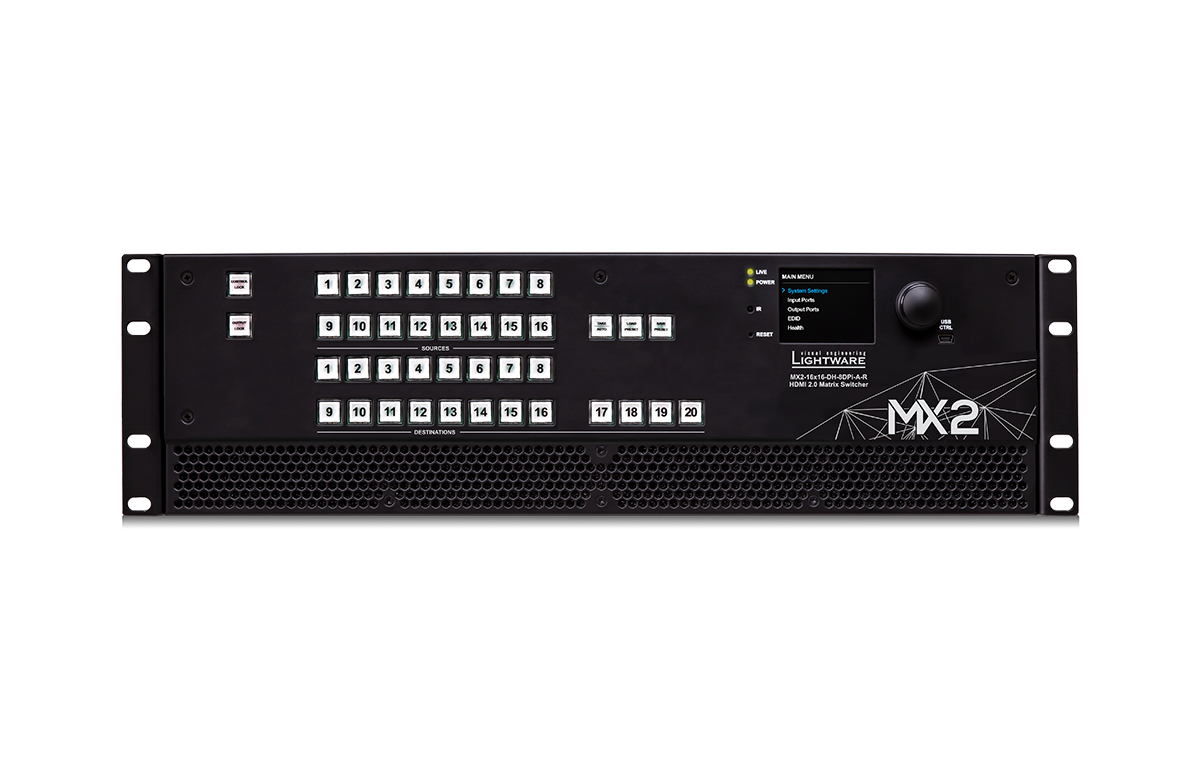

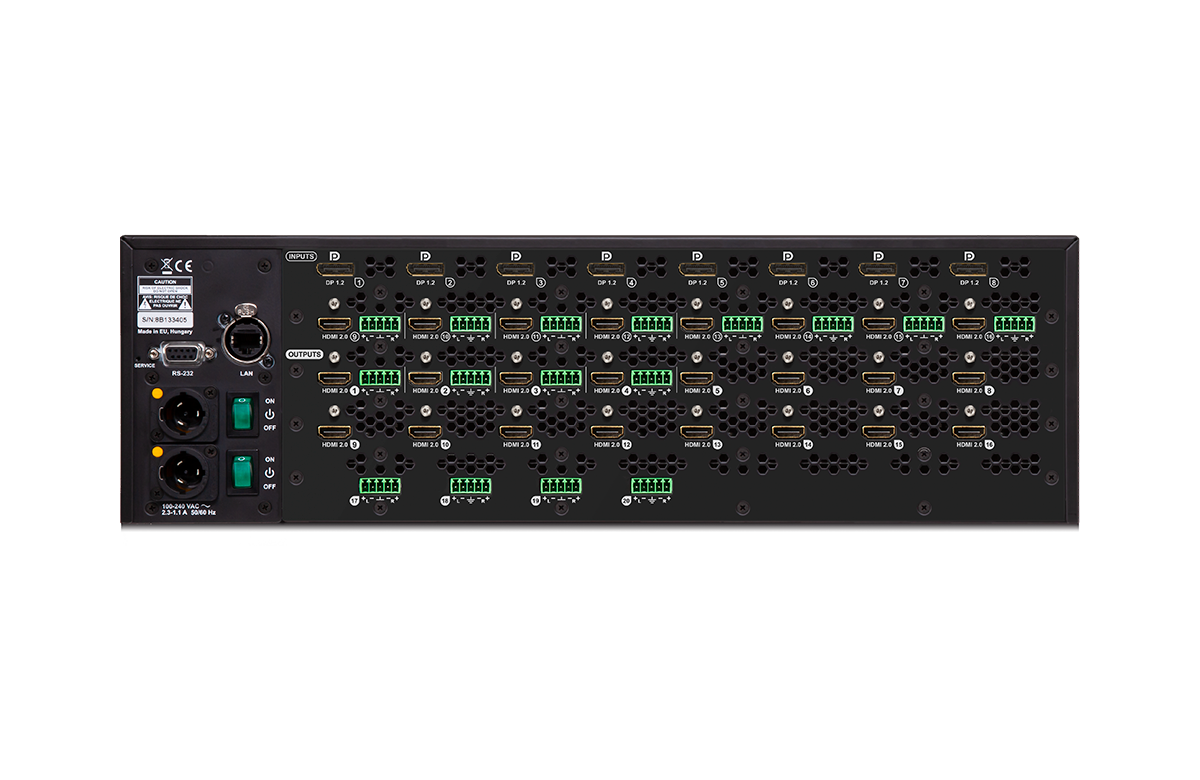

Lightware MX2-16×16-DH-8DPi-A-R
16×16 HDMI + DisplayPort matrix rental
Inputs: 8 × HDMI 2.0 + 8 × DisplayPort 1.2
Outputs: 16 × HDMI 2.0
Rack height: 3RU
Mixed HDMI and DisplayPort source routing into HDMI display and processing systems.
Lightware MX2-48×48-DH-48DPio-A-R
48×48 DisplayPort matrix rental
Inputs: 48 × DisplayPort 1.2
Outputs: 48 × DisplayPort 1.2
Rack height: 8RU
Large DisplayPort routing systems connecting playback, workstations and compatible video destinations.
Technical Specifications
Inventory
6 individual models
Matrix sizes
8×8, 16×16, 24×24 and 48×48
HDMI range
8×8, 16×16, 24×24 and 48×48
Mixed inputs
16×16: 8 HDMI + 8 DisplayPort inputs
DisplayPort range
48 DisplayPort inputs and 48 DisplayPort outputs
Video support
Up to 4K60 4:4:4; confirm source format
Audio options
Analog audio I/O on A-designated models
Model selection
Compare connections and request availability
Which Lightware MX2 models can I rent?
Our inventory includes the MX2-8×8-HDMI20-L, MX2-16×16-HDMI20-R, MX2-24×24-HDMI20-R, MX2-48×48-HDMI20-A-R, MX2-16×16-DH-8DPi-A-R and MX2-48×48-DH-48DPio-A-R. Availability depends on your rental dates.
Which 16x16 model should I choose?
Choose HDMI20-R for sixteen HDMI inputs, or DH-8DPi-A-R for eight HDMI and eight DisplayPort inputs. Both have sixteen HDMI outputs.
Which 48x48 model should I choose?
Choose HDMI20-A-R for HDMI inputs and outputs. Choose DH-48DPio-A-R for DisplayPort inputs and outputs.
How do I request a rental quote?
Send your rental dates, preferred model, source and destination counts, resolutions, connector types and cable distances. Include any signal flow drawings and support requirements.
