Lightware MX2 16×16 Rental
MX2-16×16-HDMI20-R
HDMI matrix routing for live production.
HDMI source and destination routing for general sessions, corporate events and multi-display productions.
16×16
Matrix capacity
4K60
4:4:4 support
HDMI
Video connections
3RU
Rack height
Rent the Lightware MX2-16×16-HDMI20-R
With sixteen HDMI inputs and sixteen HDMI outputs, this model suits an all-HDMI production with more routing capacity than an 8×8. Its redundant power connections and reinforced control ports suit rental and staging systems.
HDMI source and destination routing for general sessions, corporate events and multi-display productions. This matrix supports up to 4096×2160 at 60Hz with 4:4:4 color and 18 Gbps per-port signal management. Share your source formats, destination requirements and cable distances so the rental can be planned around your production.
Compare all Lightware MX2 rental models or explore our event equipment rentals.
Technical Specifications

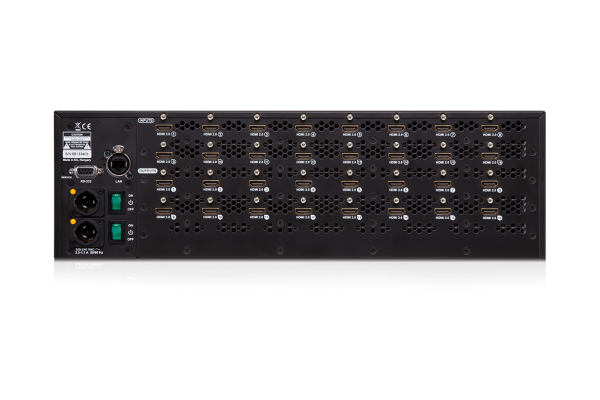

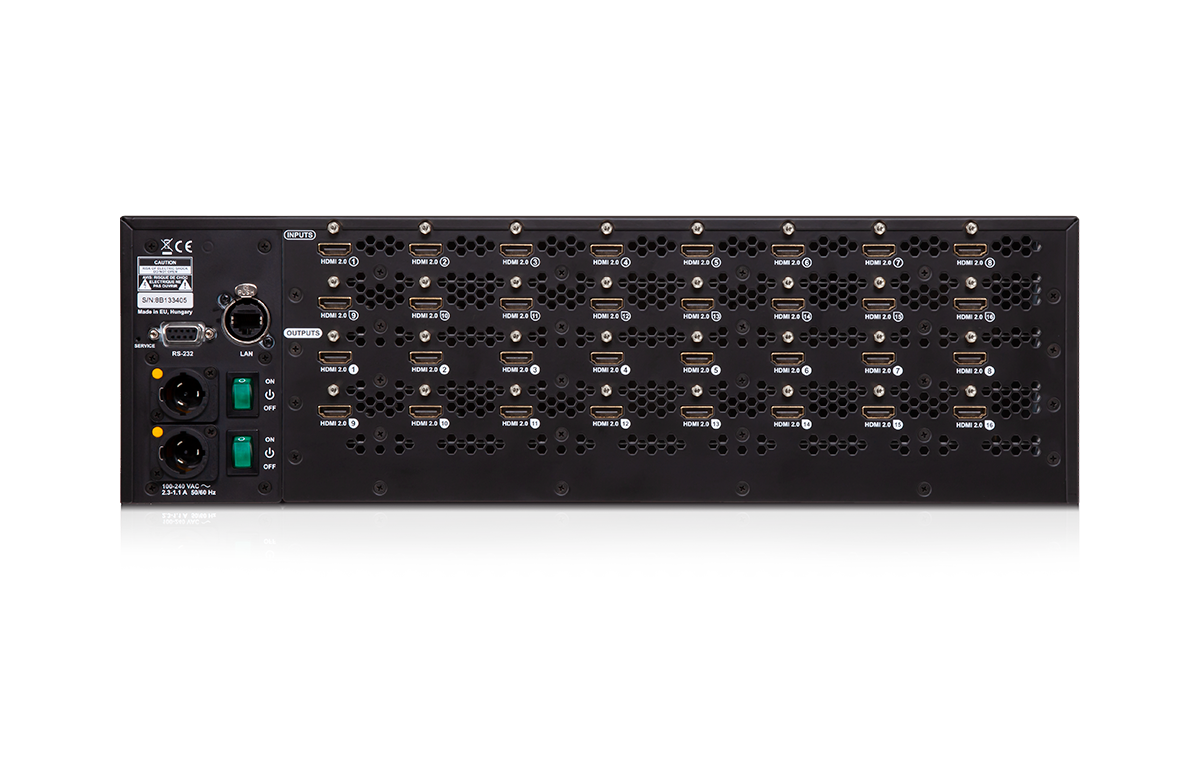

Video inputs
16 × HDMI 2.0
Video outputs
16 × HDMI 2.0
Maximum resolution
4096×2160 at 60Hz, RGB / YCbCr 4:4:4
Signal bandwidth
18 Gbps per port
Audio
Embedded HDMI audio
Rack height
3RU
Power
Dual redundant power; 2 × powerCON TRUE1
Control
Ethernet, RS-232 and USB
How does this differ from the 16x16 DH model?
The HDMI20-R has sixteen HDMI inputs. The MX2-16×16-DH-8DPi-A-R instead has eight HDMI inputs plus eight DisplayPort inputs. Both provide sixteen HDMI outputs.
Does this matrix scale every signal or provide seamless switching?
Plan this rental as a signal-routing matrix. Do not assume it replaces a presentation switcher or scaler. Share mixed-resolution or seamless-transition requirements so HRE can help specify the complete signal chain.
What should I include in my rental request?
Specify the MX2-16×16-HDMI20-R, rental dates, source and destination counts, resolution, frame rate, cable distances and any audio requirements. Tell us about additional cabling, processing or technical support you need.
Can I rent a different MX2 size?
Yes. Compare our six Lightware MX2 models to select the right port count and connector format for your production.
