AJA Ki Pro Ultra 12G Rental
4K Recorder + Multi-Channel HD Recording Kit
Capture your show. Backed by real-world engineering.
A two-recorder rental package for corporate events, program feeds and multi-camera HD recording, with PAK media and a drive dock.
2 recorders
Ki Pro Ultra 12G units
Included in the HRE package
4K / UltraHD
Single-channel recording
Up to 60p in supported ProRes formats
4 HD channels
Per recorder in multi-channel mode
Up to 1080p60 Apple ProRes
4x 2TB
PAK SSD media included
Plus a PAK media drive dock
AJA Ki Pro recorder rentals for live production.
HRE’s AJA Ki Pro Ultra 12G rental package gives your production two professional recorder/player units with recording media, a media dock and audio breakout cabling. Capture a program feed, plan a backup recording or record multiple HD sources for post-production.
Each recorder operates in either single-channel 4K/UltraHD mode or multi-channel HD mode. HRE helps plan the recording format, codec, channel count, audio routing and media capacity around your show.
Included in the Rental Package
- 2x AJA Ki Pro Ultra 12G recorders
- 4x 2TB PAK media SSD drives
- 1x PAK media drive dock
- 2x multi-channel XLR audio snakes
Building a complete camera system? Explore our Panasonic PTZ camera kits and Ross Carbonite Ultra switcher rentals.
Technical Specifications
Single-channel mode
4K / UltraHD / 2K / HD recording and playback; up to 60p with supported Apple ProRes settings
Multi-channel mode
Up to 4 simultaneous HD channels per recorder, up to 1080p60 in Apple ProRes
Recording codecs
Apple ProRes; Avid DNxHR / DNxHD in supported single-channel formats. Codec and frame-rate limits vary
Video connections
12G-SDI, 3G-SDI / quad-link workflows and HDMI 2.0
Recording media
Dual PAK media bays per recorder; package includes 4x 2TB PAK SSDs
Media offload
1x PAK media drive dock included for file transfer
Audio
Embedded SDI / HDMI and analog / digital audio I/O; 2 XLR audio snakes included
Form factor
Half-rack width, 2RU height per recorder
What is included in the Ki Pro Ultra 12G rental?
The HRE package includes two Ki Pro Ultra 12G recorders, four 2TB PAK SSD drives, one PAK media drive dock and two multi-channel XLR audio snakes.
Can I record four 4K feeds on one recorder?
No. Each unit records a single 4K/UltraHD feed in single-channel mode. Multi-channel mode supports up to four HD channels per unit. Tell HRE your source count and format so we can plan the correct recording configuration.
How much recording time does the media provide?
Recording time depends on the codec, resolution, frame rate, audio and number of channels. Send your show duration and delivery requirements so HRE can help calculate capacity and plan media changes and offloads.
Can the two recorders be used for main and backup recording?
Yes, the two units can be configured to record the same program feed for a main and backup workflow, with the appropriate signal distribution. Tell us your redundancy requirements so we can scope the connections and recording plan.
Do I need genlocked sources for multi-channel HD recording?
AJA added genlock-free multi-channel recording in firmware v2.0. Sources still need compatible recording formats, and genlock-free recording should not be treated as a guarantee of inter-camera synchronization. HRE can confirm firmware and timing requirements for your setup.
What should I send for a recorder rental quote?
Send your show dates and location, source count, resolution and frame rate, preferred recording codec, show duration, audio requirements and backup-recording needs. Include your media-offload schedule and any onsite support requirements.

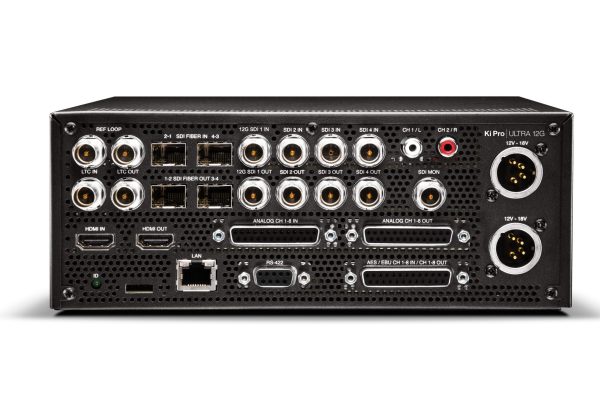

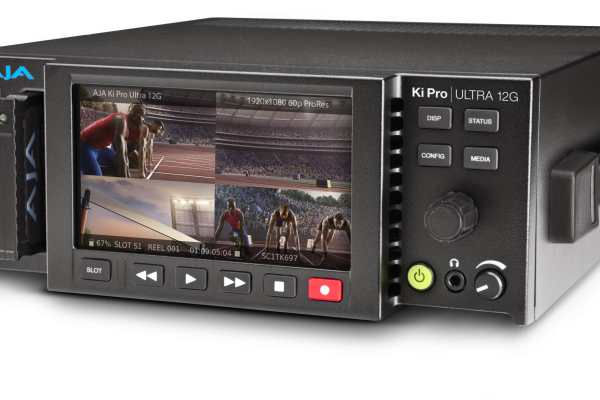

A Closer Look at the Ki Pro Recording Kit
RENTAL INQUIRY
Request an AJA Ki Pro Rental Quote.
Tell us your show dates, recording channels, resolution, codec, duration and audio needs. We will help plan the recorder and media package.
