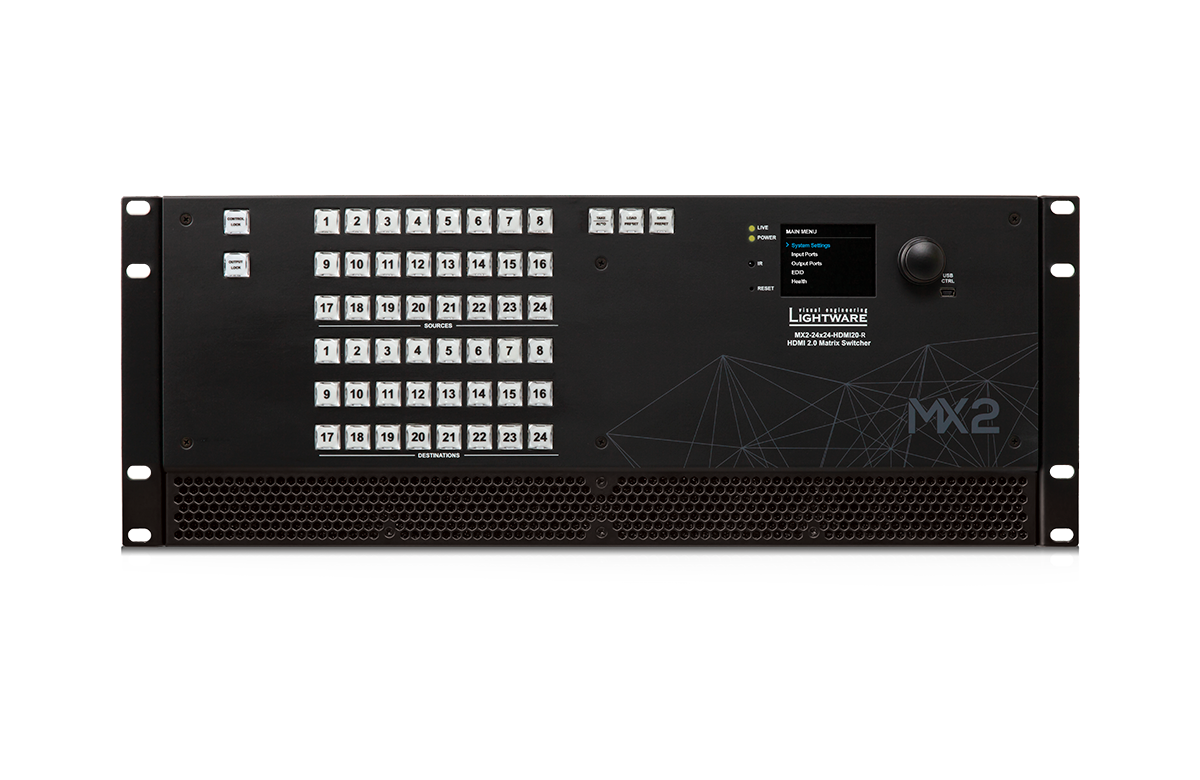

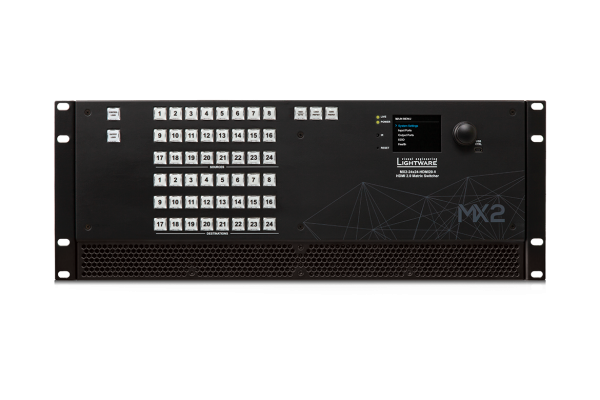

Lightware MX2 24×24 Rental
MX2-24×24-HDMI20-R
HDMI matrix routing for live production.
Expanded HDMI routing for multi-room events, larger presentation systems and productions with many display destinations.
24×24
Matrix capacity
4K60
4:4:4 support
HDMI
Video connections
4RU
Rack height
Rent the Lightware MX2-24×24-HDMI20-R
The 24×24 model bridges the gap between sixteen-port and forty-eight-port systems. Its 4RU chassis accommodates twenty-four HDMI sources and destinations, with redundant power for demanding production environments.
Expanded HDMI routing for multi-room events, larger presentation systems and productions with many display destinations. This matrix supports up to 4096×2160 at 60Hz with 4:4:4 color and 18 Gbps per-port signal management. Share your source formats, destination requirements and cable distances so the rental can be planned around your production.
Compare all Lightware MX2 rental models or explore our event equipment rentals.
Technical Specifications

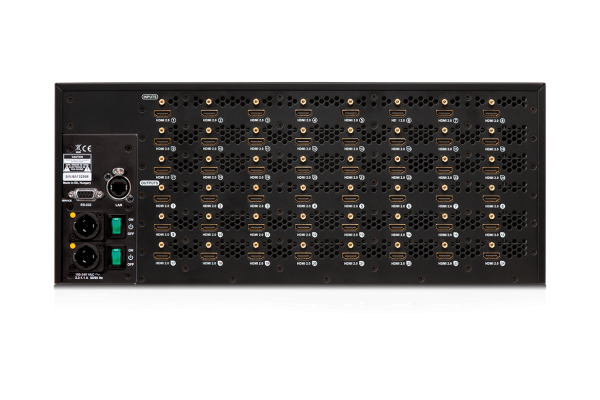

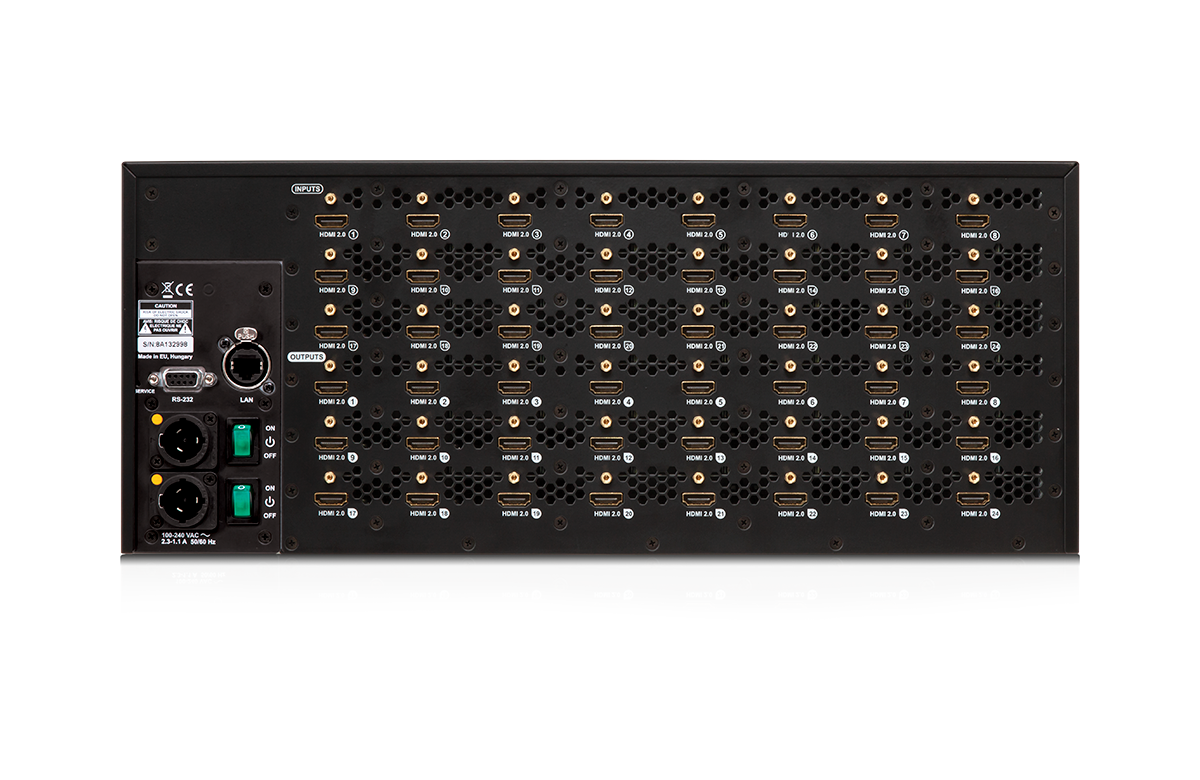

Video inputs
24 × HDMI 2.0
Video outputs
24 × HDMI 2.0
Maximum resolution
4096×2160 at 60Hz, RGB / YCbCr 4:4:4
Signal bandwidth
18 Gbps per port
Audio
Embedded HDMI audio
Rack height
4RU
Power
Dual redundant power; 2 × powerCON TRUE1
Control
Ethernet, RS-232 and USB
When should I rent a 24x24 matrix?
Choose the 24×24-HDMI20-R when a sixteen-input or sixteen-output system is too small and your sources and destinations use HDMI. Include spare inputs and outputs in your signal plan.
Does this matrix scale every signal or provide seamless switching?
Plan this rental as a signal-routing matrix. Do not assume it replaces a presentation switcher or scaler. Share mixed-resolution or seamless-transition requirements so HRE can help specify the complete signal chain.
What should I include in my rental request?
Specify the MX2-24×24-HDMI20-R, rental dates, source and destination counts, resolution, frame rate, cable distances and any audio requirements. Tell us about additional cabling, processing or technical support you need.
Can I rent a different MX2 size?
Yes. Compare our six Lightware MX2 models to select the right port count and connector format for your production.
