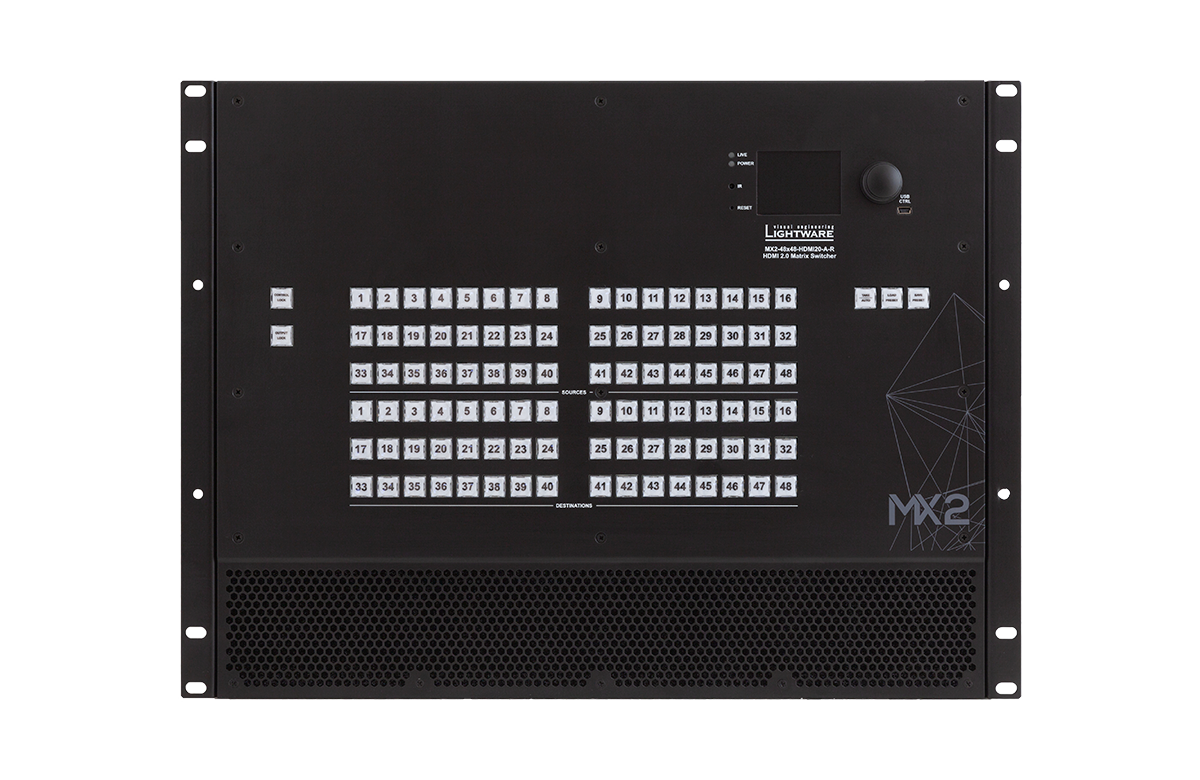

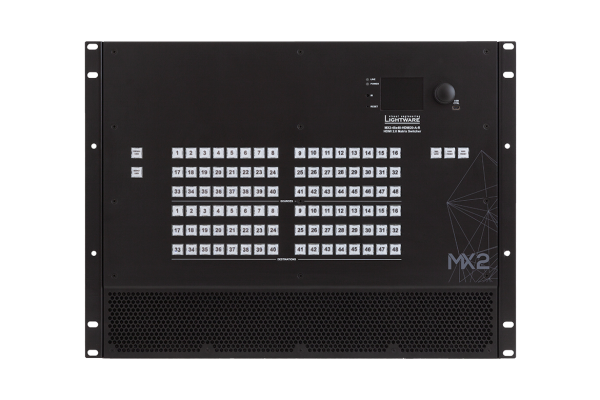

Lightware MX2 48×48 Rental
MX2-48×48-HDMI20-A-R
HDMI + audio matrix routing for live production.
High-capacity HDMI distribution for large events, complex staging systems and multi-screen productions.
48×48
Matrix capacity
4K60
4:4:4 support
HDMI + audio
Video connections
8RU
Rack height
Rent the Lightware MX2-48×48-HDMI20-A-R

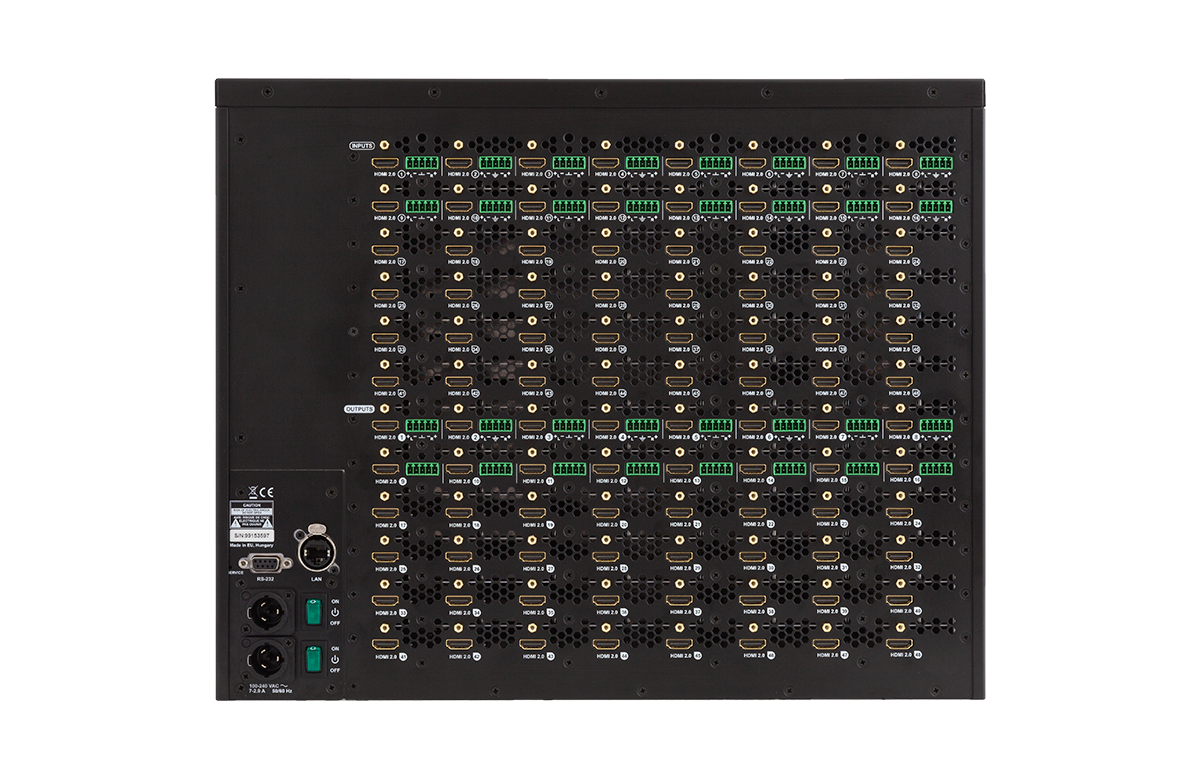

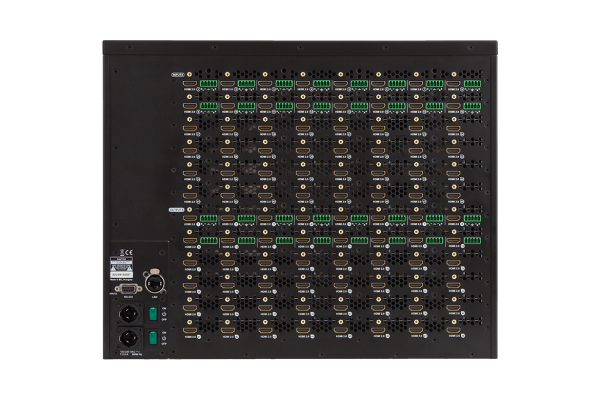

This audio-enhanced 48×48 router combines forty-eight HDMI inputs and outputs with sixteen analog audio inputs and sixteen analog audio outputs at ports 1–16. It supports embedding and de-embedding for systems that need video and audio routing planned together.
High-capacity HDMI distribution for large events, complex staging systems and multi-screen productions. This matrix supports up to 4096×2160 at 60Hz with 4:4:4 color and 18 Gbps per-port signal management. Share your source formats, destination requirements and cable distances so the rental can be planned around your production.
Compare all Lightware MX2 rental models or explore our event equipment rentals.
Technical Specifications
Video inputs
48 × HDMI 2.0
Video outputs
48 × HDMI 2.0
Maximum resolution
4096×2160 at 60Hz, RGB / YCbCr 4:4:4
Signal bandwidth
18 Gbps per port
Audio
16 analog inputs + 16 analog outputs; embed/de-embed
Rack height
8RU
Power
Dual redundant power; 2 × powerCON TRUE1
Control
Ethernet, RS-232 and USB
What does the A in HDMI20-A-R mean?
This is the audio-enhanced version. It provides sixteen Phoenix analog audio inputs and sixteen analog audio outputs, supporting audio embedding and de-embedding alongside its HDMI routing.
Does this matrix scale every signal or provide seamless switching?
Plan this rental as a signal-routing matrix. Do not assume it replaces a presentation switcher or scaler. Share mixed-resolution or seamless-transition requirements so HRE can help specify the complete signal chain.
What should I include in my rental request?
Specify the MX2-48×48-HDMI20-A-R, rental dates, source and destination counts, resolution, frame rate, cable distances and any audio requirements. Tell us about additional cabling, processing or technical support you need.
Can I rent a different MX2 size?
Yes. Compare our six Lightware MX2 models to select the right port count and connector format for your production.
