Blackmagic Videohub 40×40 12G Rental
12G-SDI Matrix Router
Signal routing built around your production.
Expanded SDI routing for general sessions, multi-camera shows and distributed production systems.
40 inputs
12G-SDI source connections
40 outputs
SDI destinations
UHD60
Up to 2160p60
2RU
Redundant power supplies
Rent the Blackmagic Videohub 40×40 12G
Expanded SDI routing for general sessions, multi-camera shows and distributed production systems. Choose the 40×40 when a twenty-port system is too small, but your signal plan does not require eighty inputs and outputs.
Build your rental request around the complete signal flow: primary sources, backup sources, destination formats and cable distances. Tell HRE which feeds need to reach recording, switching, monitoring or distribution systems so we can help scope the package.
Compare all Blackmagic Videohub rental models. Pair the router with a Ross Carbonite Ultra rental or AJA Ki Pro recording system as your production requires.
Explore other Videohub rental sizes
Technical Specifications
SDI inputs / outputs
40 inputs / 40 outputs
Video formats
SD, HD and Ultra HD up to 2160p60
SDI rates
270Mb, 1.5G, 3G, 6G and 12G
Signal processing
Output reclocking; no input resynchronization
Reference
Tri-sync or black burst input; loop output

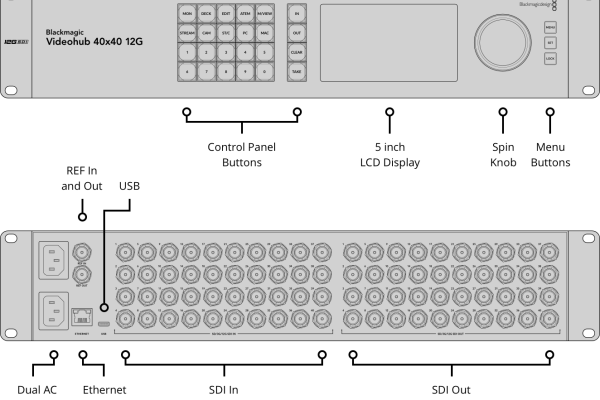

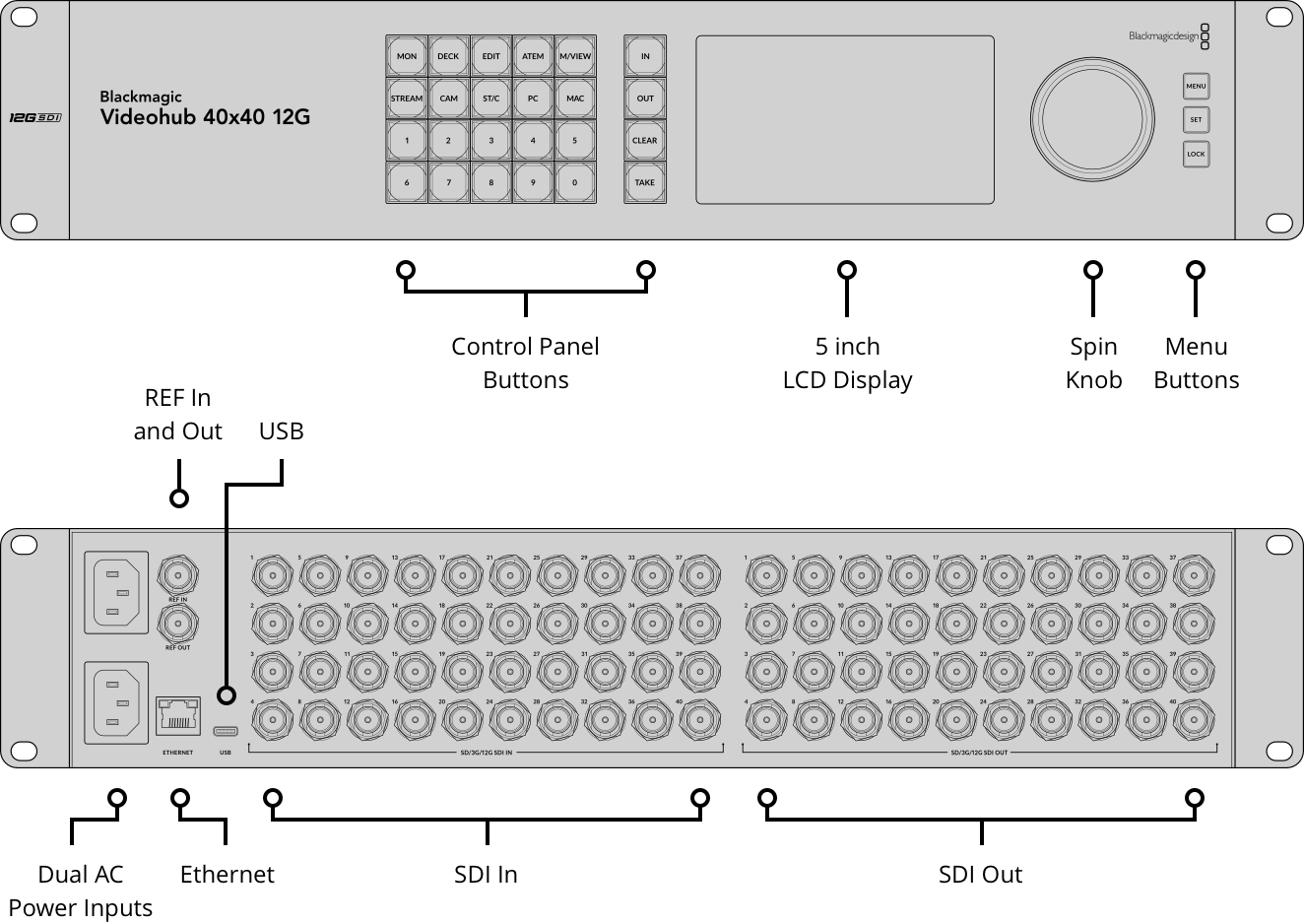

Control

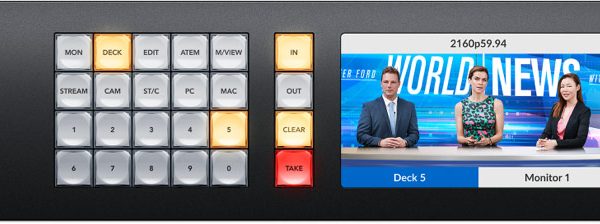

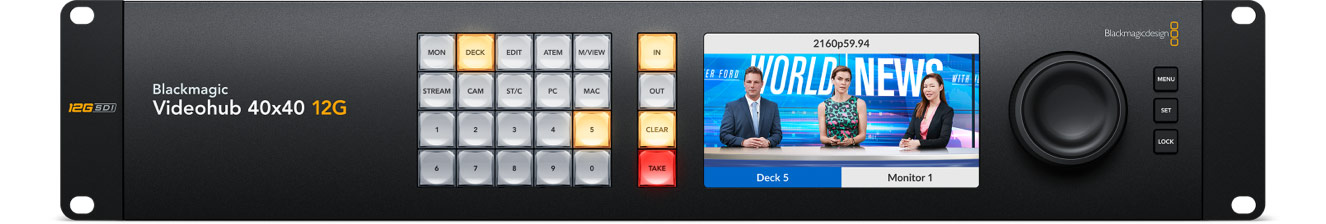

Front panel, Ethernet control; USB-C setup
Rack height
2RU
Power
2 internal supplies (redundant); 100–240V AC
When should I choose the 40x40?
Choose this model when your complete signal plan fits within 40 inputs and 40 outputs. Count spare and backup paths before choosing the router size.
Can I route different SDI formats at the same time?
Yes. These models accept different supported SDI standards on different inputs. Routing does not convert the signal, so each destination must accept the incoming format.
Does a Videohub provide seamless switching or scaling?
These models have no input resynchronization. They are routing matrices, not presentation scalers or production switchers. Include any clean-switching, synchronization or format-conversion requirements in your request.
What should I send for a rental quote?
Send your dates, preferred model, source and destination list, resolution, frame rate and cable distances. Include a signal-flow drawing if available and note any control panels, cabling, conversion or technical support you need.
Can HRE help with the rest of the system?
Tell us about your complete production so we can help scope the routing alongside switching, playback and recording. Additional equipment and support can be quoted to your requirements.
RENTAL INQUIRY
Tell Us About Your Next Show.
Request a 40×40 12G Videohub rental quote. Send your dates, signal requirements and any additional equipment or support needs.
